Simulator
One simulator, built to evolve. Start with the configuration you need and upgrade it over time.
TERRA is ImSim's modular racing simulator platform, available from a static configuration to a complete motion setup.
01 02 03 04 Start here. Build from there.

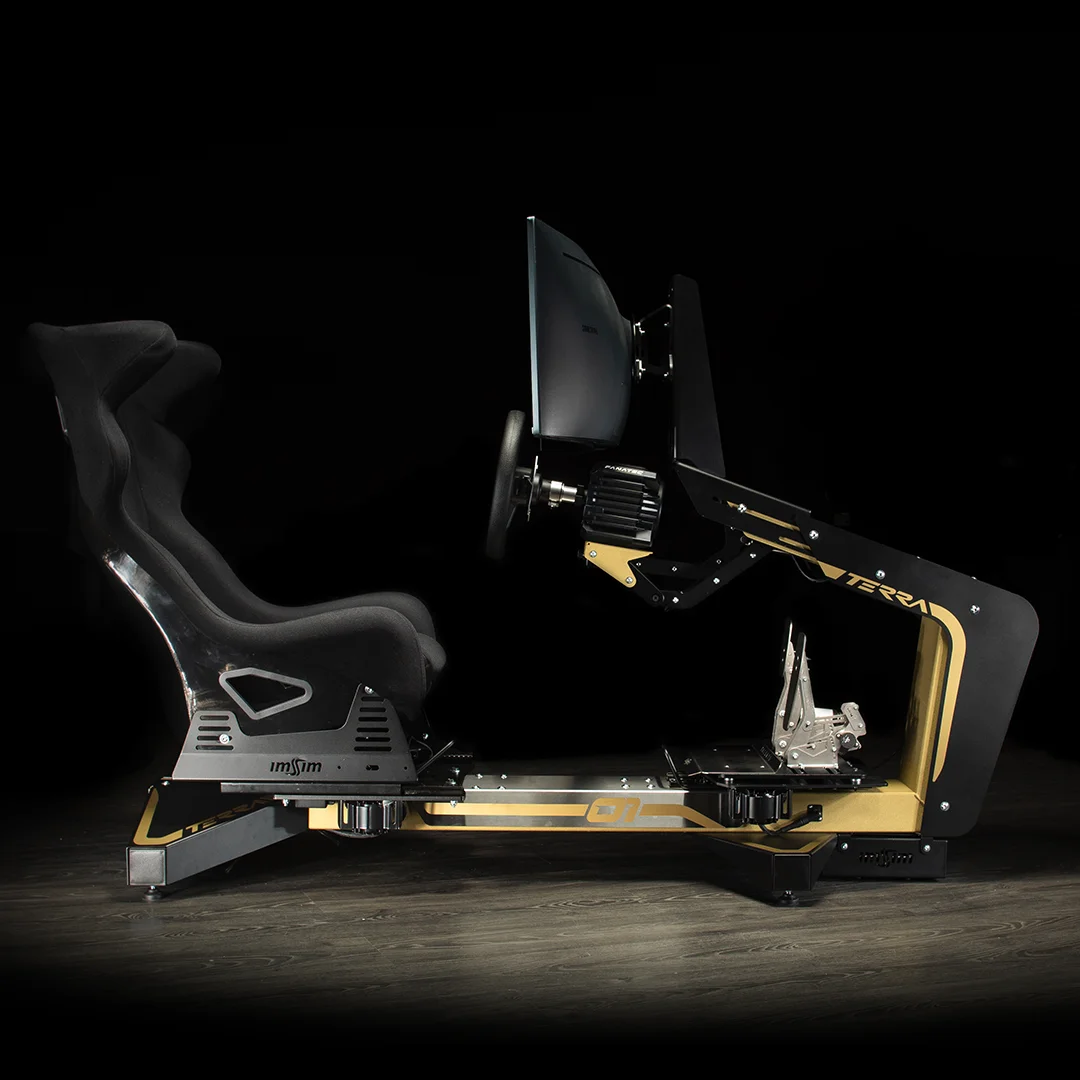

01

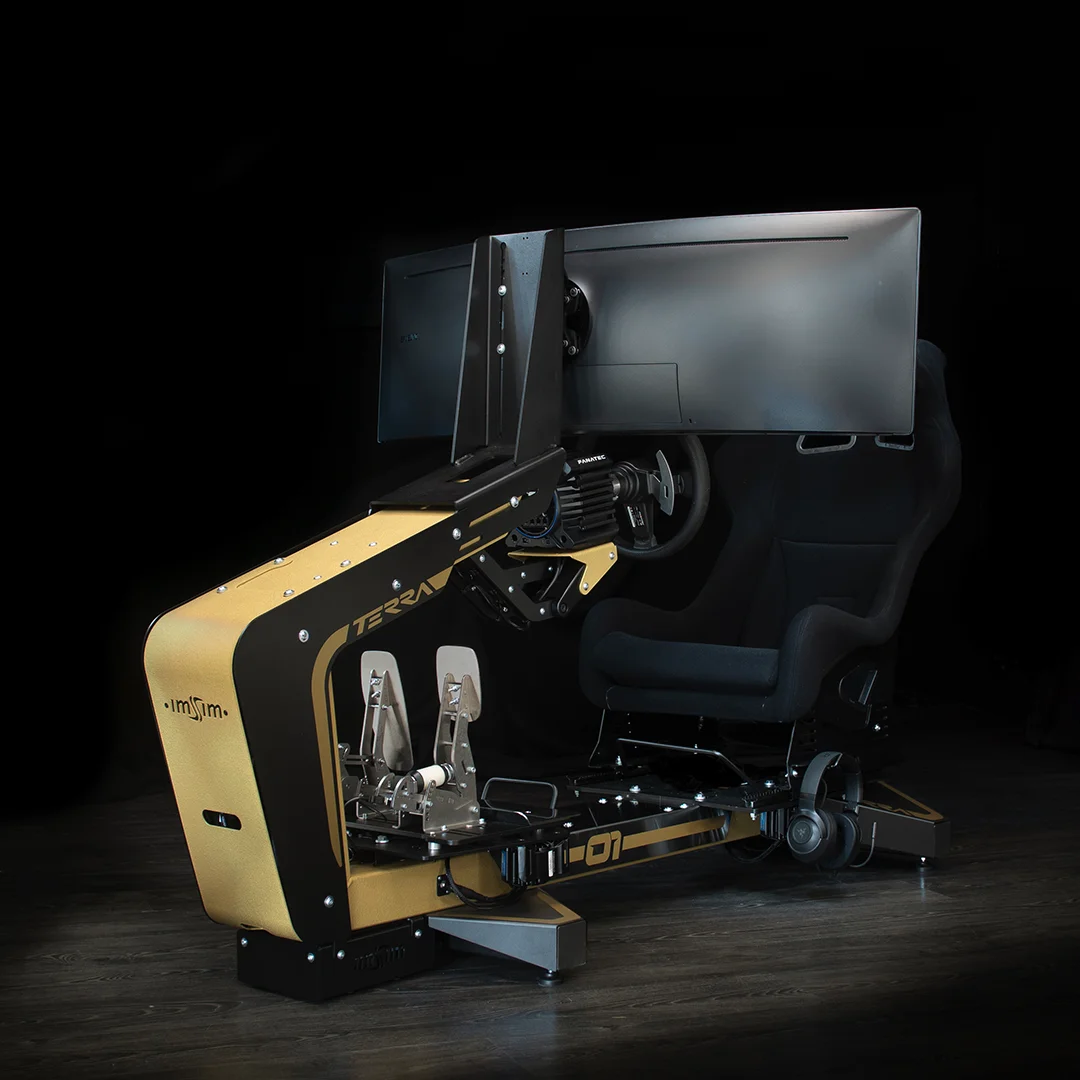

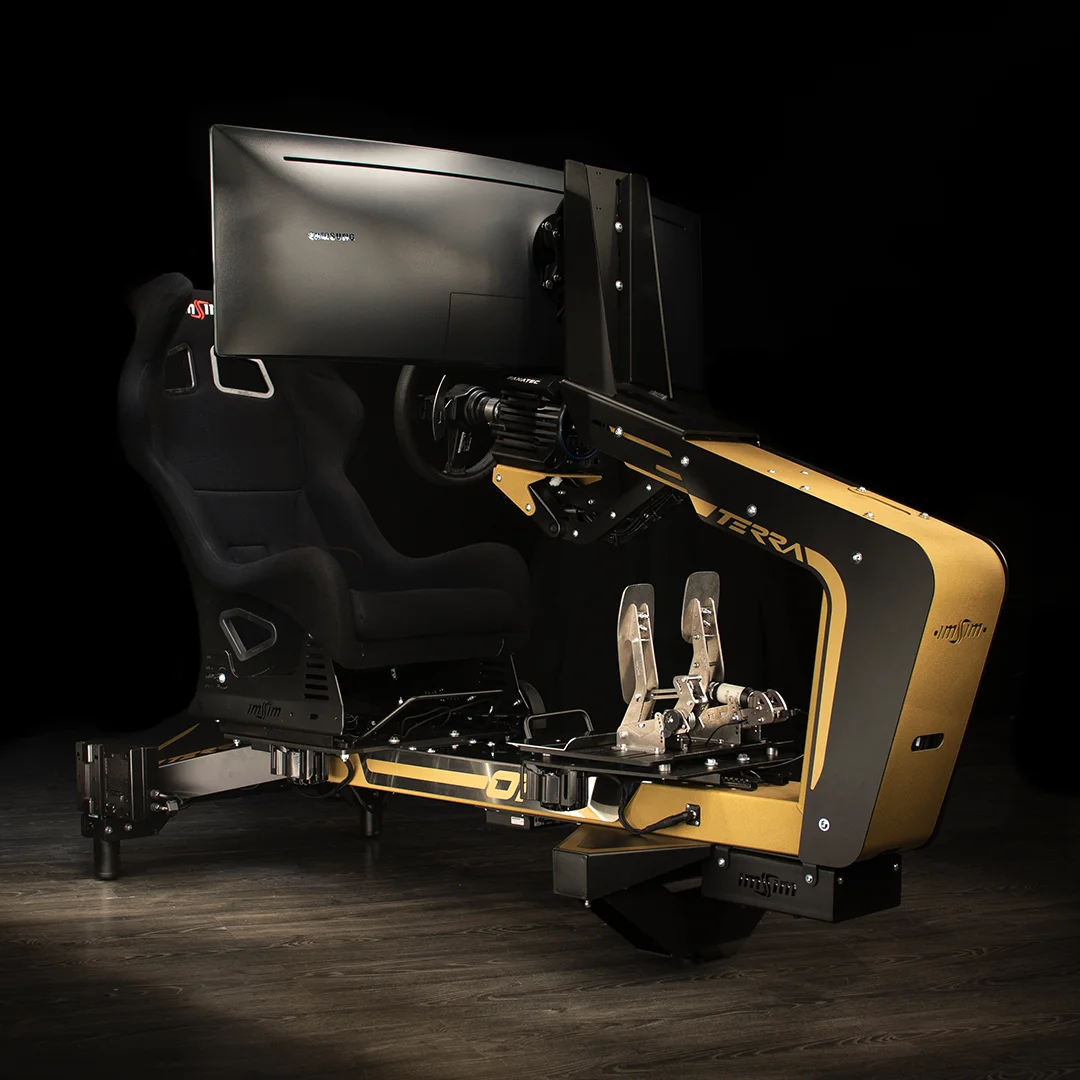

Start with a complete static simulator. The same platform can take every later TERRA upgrade.
02
Four independently controlled transducers, two beneath the pedals and two beneath the seat, reproduce tyre, road and drivetrain feedback through the chassis, without moving the simulator.
03

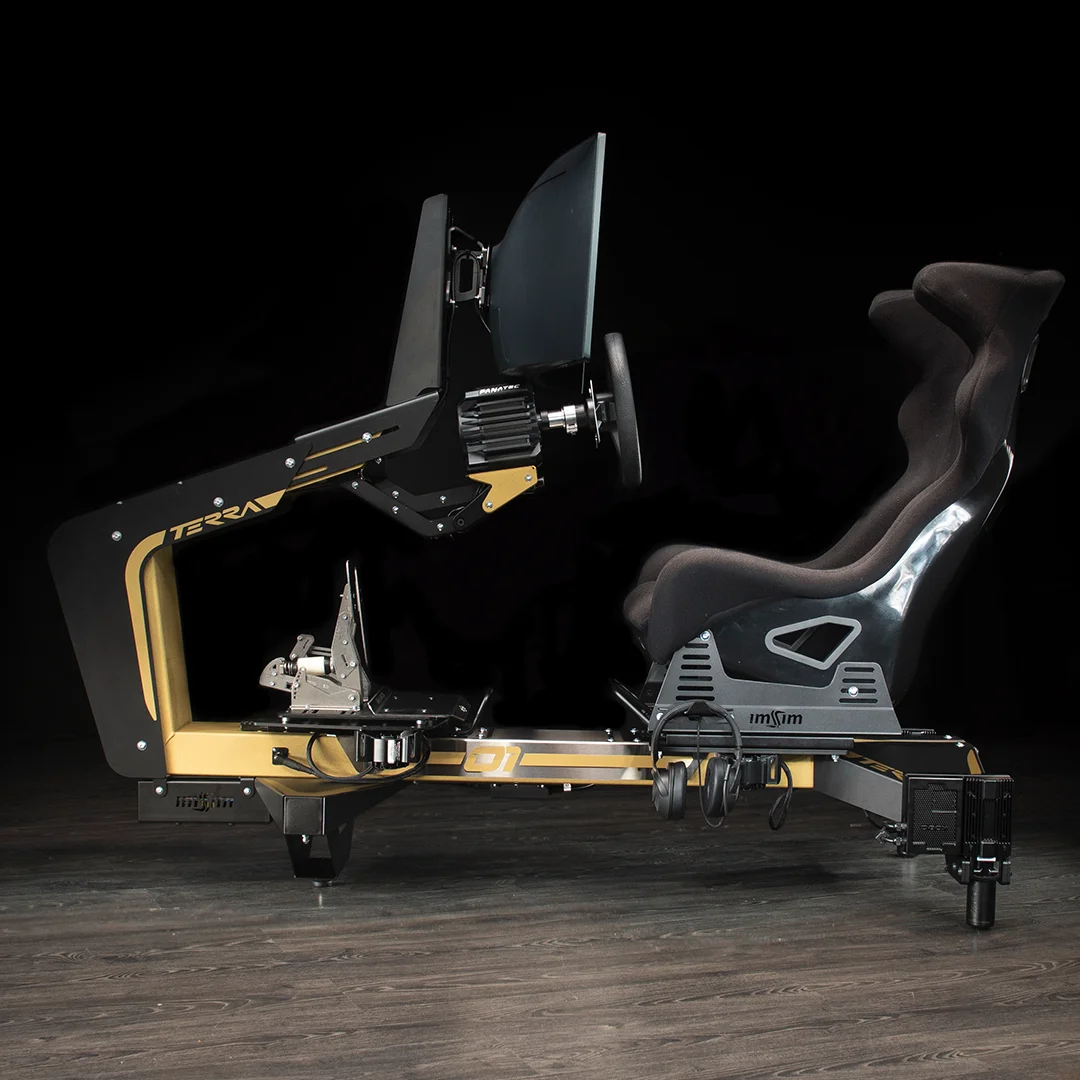

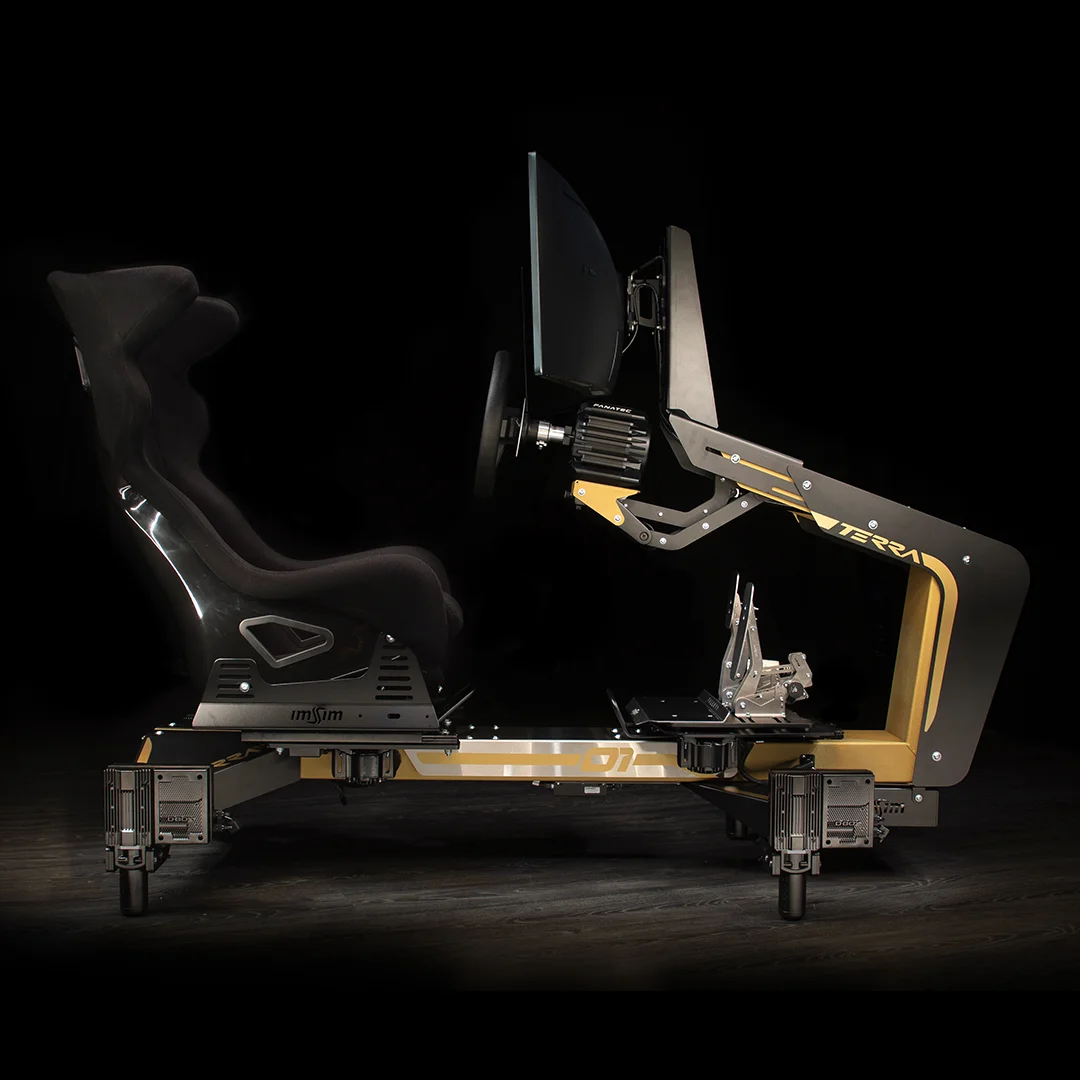

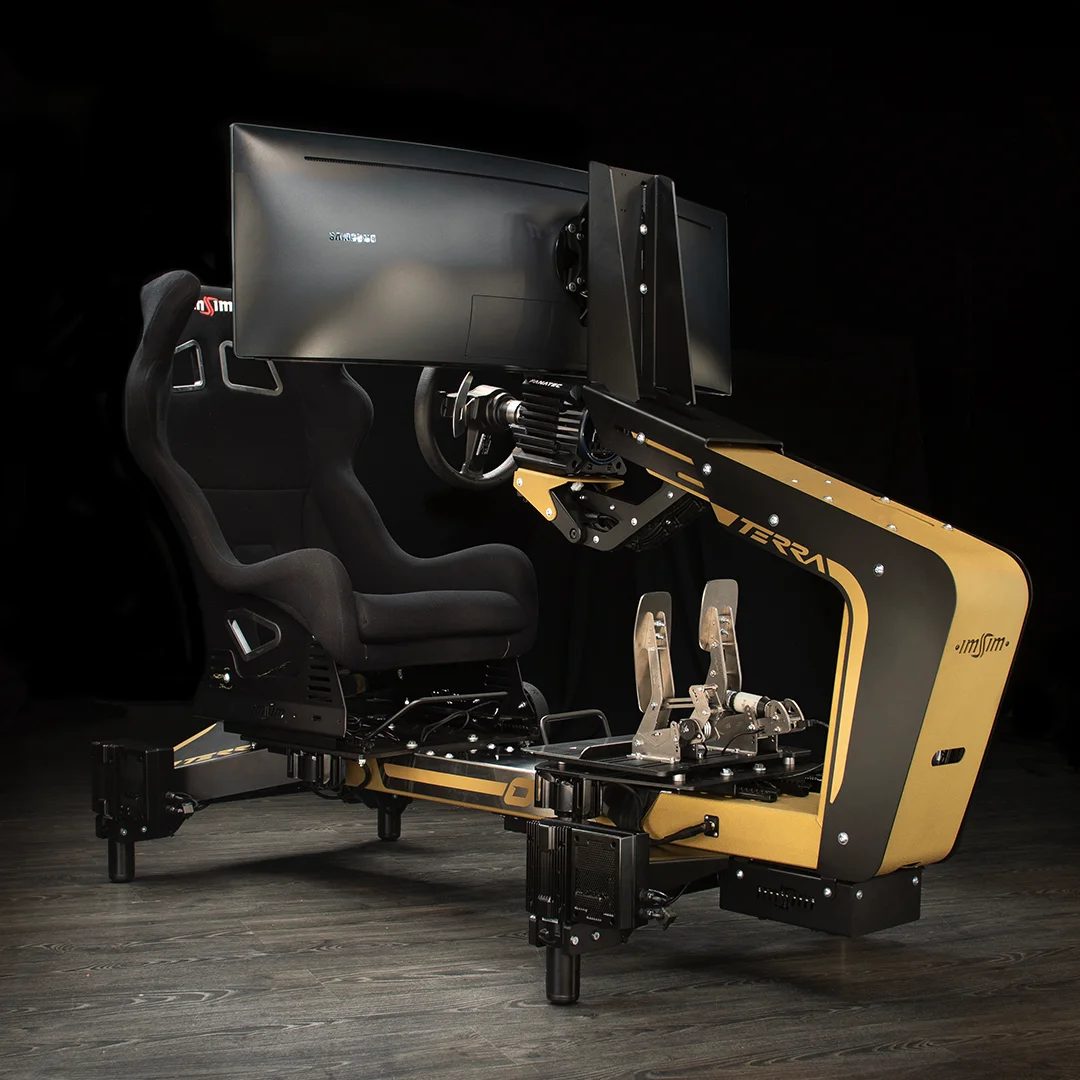

Motion is added beneath the existing chassis, without replacing the platform above it.
04
The complete TERRA configuration, built on the same platform you started with.
Driving position
Seat position, steering height and pedal reach adjust in seconds, without tools, so different drivers can set the same TERRA to their own driving position.
01
Seat
Pull the lever to slide the seat forwards or backwards on the chassis rail.
02
Steering height
Use the column control to raise or lower the steering wheel.
03
Pedal plate
The entire pedal plate slides forwards or backwards, adjusting reach without changing its angle.
Motion

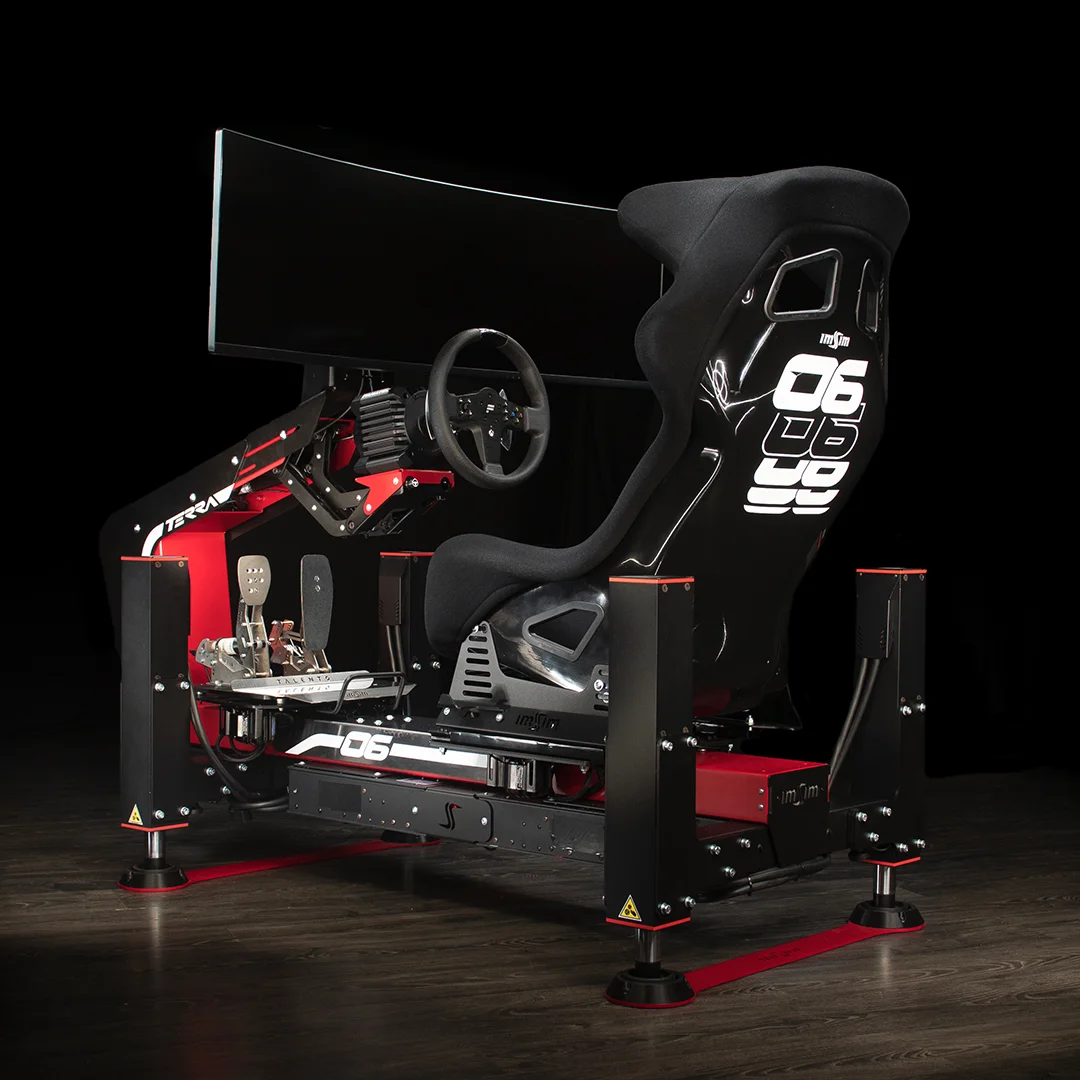

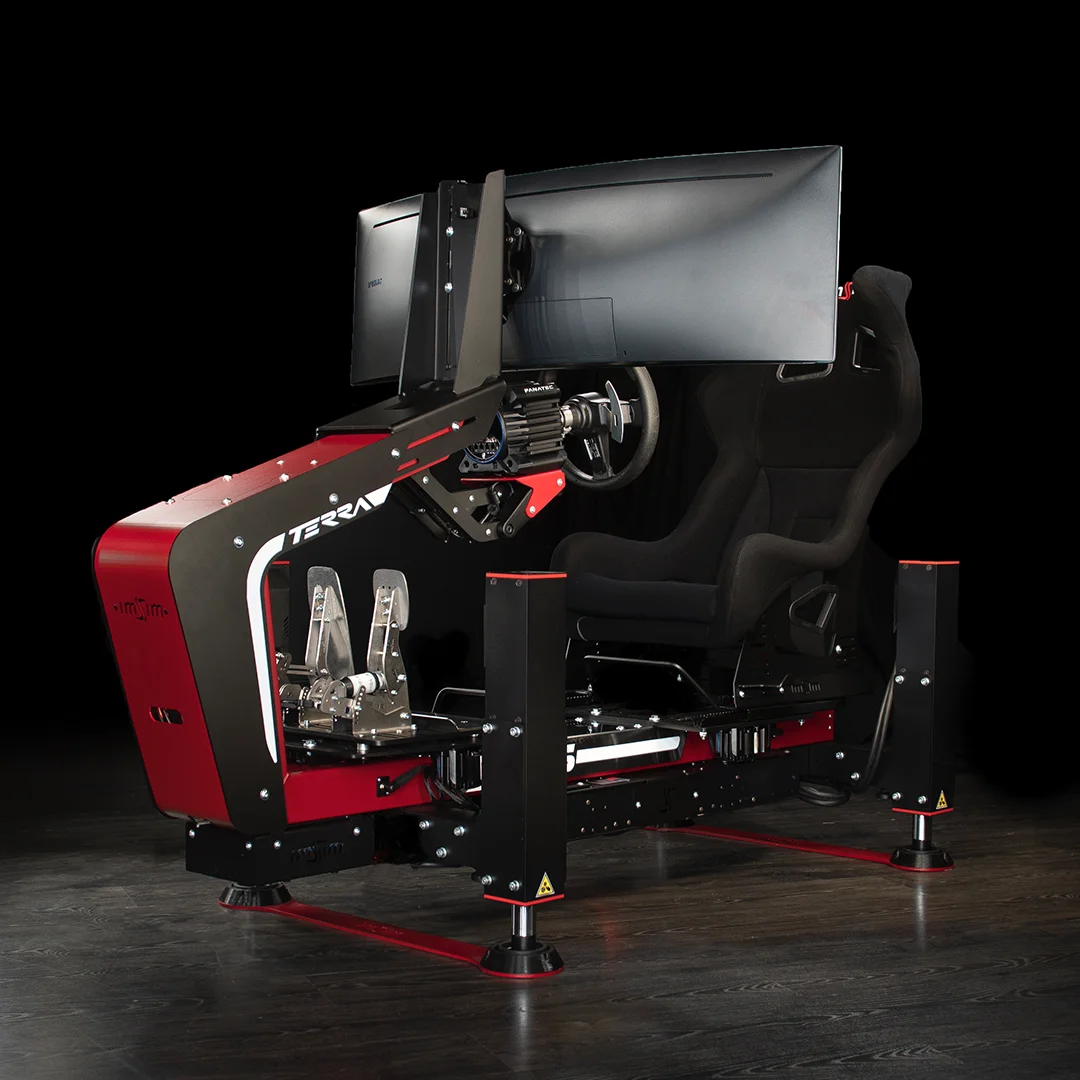

The motion system moves the complete chassis, so braking, acceleration, cornering and surface changes are felt through the seat and controls.
Braking
The front actuators lower while the rear extend, pitching the chassis forwards.
Accelerating
The opposite movement pitches the chassis rearwards, increasing pressure through the seat back.
Cornering
One side rises as the other lowers, creating the roll cue for cornering.
Surface
All four actuators work together for kerbs, crests and bumps.
D-BOX
FIA-licensed motion system available for TERRA.

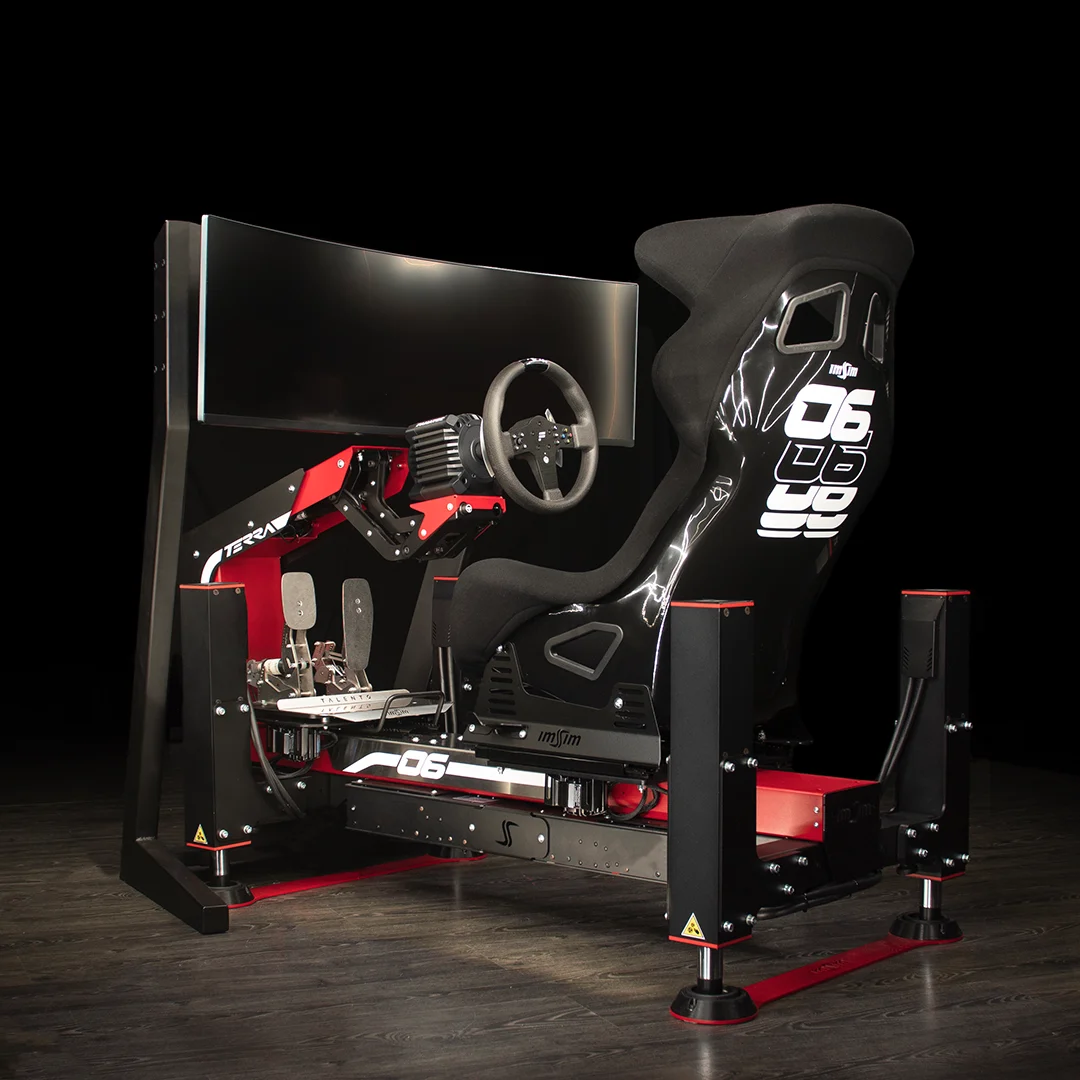

Qubic System
A longer-stroke motion option for applications that require greater travel.
Sensory feedback
Four independently controlled transducers sit in the chassis: two beneath the pedals and two beneath the seat. Each corresponds to one corner of the car, so feedback is delivered from the corner where it occurs.
Four transducers, one per corner
Tactile system · four transducers
Select a transducer to see which corner of the car it represents.
Front right
FR · tactile transducer
Kerbs and road surface on the front right, and lock-up on that wheel under braking.
Front left
FL · tactile transducer
The same for the front left, on a separate channel.
Rear right
RR · tactile transducer
Rear right: the first signs of the rear losing grip.
Rear left
RL · tactile transducer
Rear left: traction out of a corner and wheelspin on that wheel.
Wheel and wheelbase
A standard wheel deck drilled for common wheelbase mounting patterns.
Pedals
ImSim Talento pedals or compatible third-party pedal sets.
Shifter and handbrake
Either side of the seat, on brackets that move with it.
Software
ImSim develops the software that coordinates motion, tactile feedback and simulator settings. This allows the different systems to be configured and tuned as part of the same simulator.
TERRA supports a wide range of racing and flight simulation titles. See the FAQ for the current compatibility list.
Technical data
Dimensions shown are for a TERRA with four actuators and a 49-inch single-screen setup. Other configurations will vary.
Side · 1914 × 1314 mm
Plan · 763 mm chassis, 1206 mm across the screen
| Dimensions | 1914 × 763 mm, 1314 mm high, with four actuators and a 49-inch screen. The screen itself is 1206 mm wide |
|---|---|
| Motion | Optional. Two or four actuators, D-BOX or Qubic System |
| Tactile system | Optional. Four transducers, a pair under the pedals and a pair under the seat, available with or without motion |
| Audio | Built into the seat, plus an optional external 5.1 sound system |

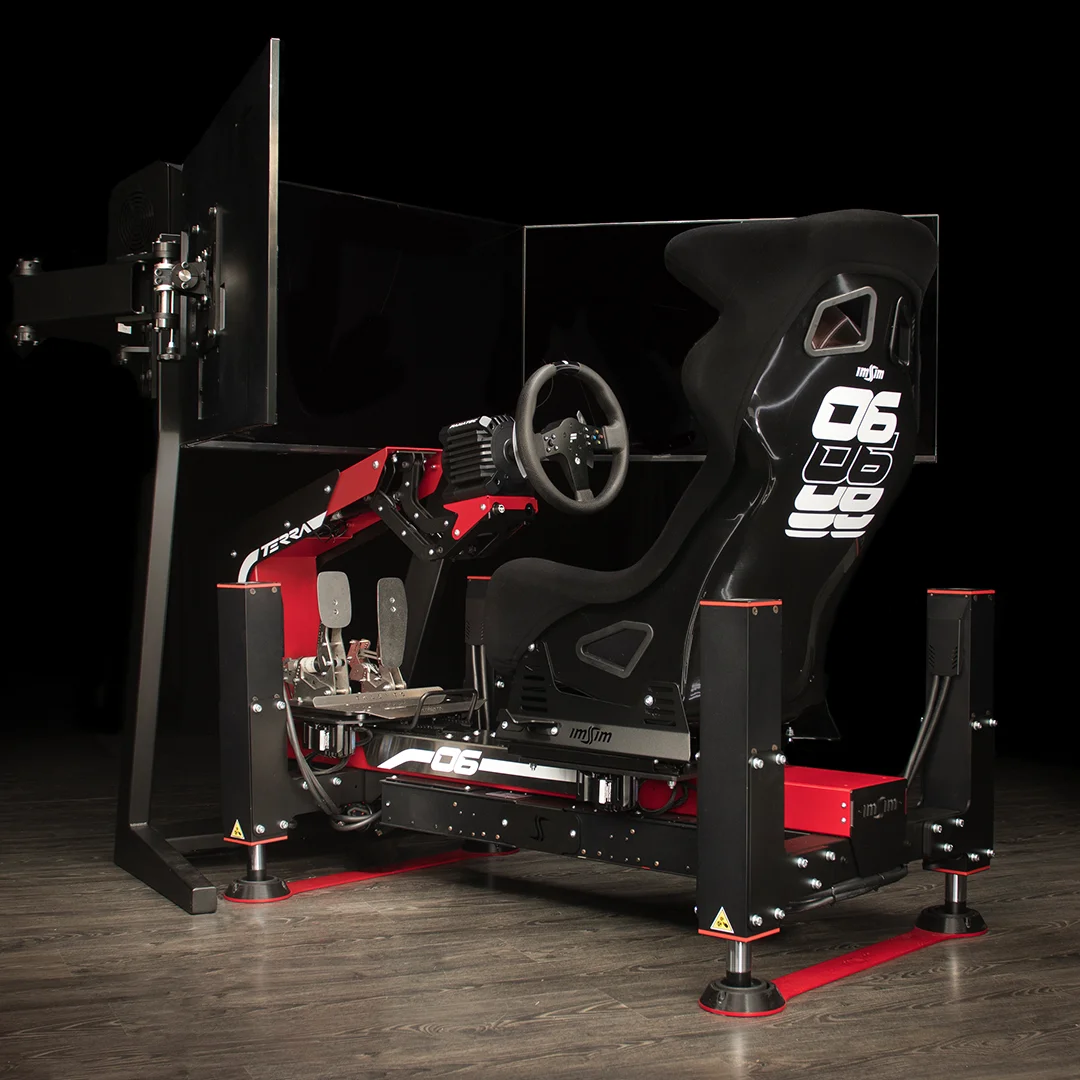

| Screens | One on the simulator, or up to three on the ImSim stand |
| Controls | Specified per order: wheelbase, wheel, dashboard and pedals are chosen with each customer |
| Adjustment | Adjustable steering height, seat position and pedal reach |
| Maximum user weight | 135 kg |
| Colours | Four standard colour options. Custom paint and vinyl available by project |
| Manufacture | Designed, engineered and built by ImSim in Portugal |
